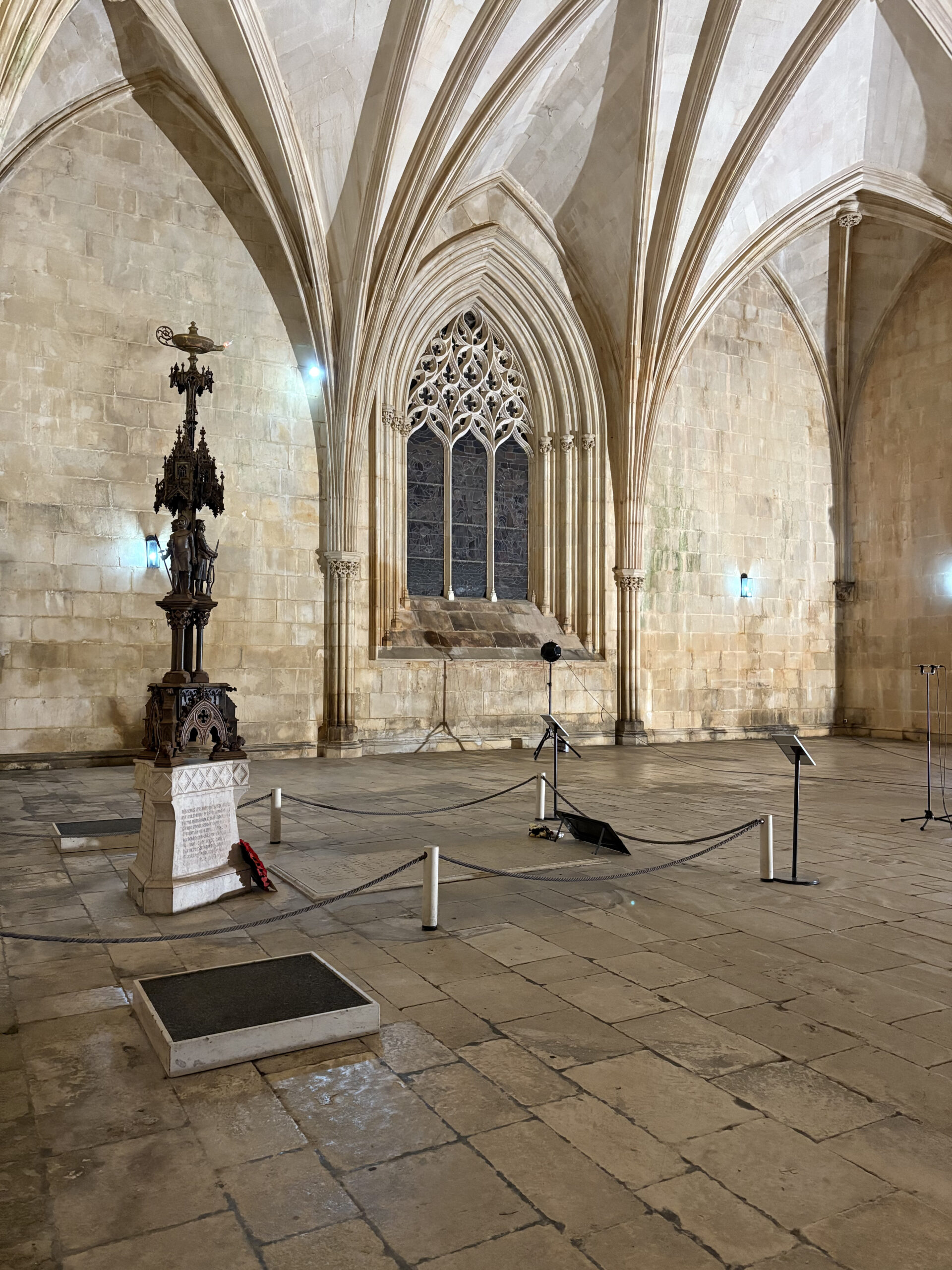

The Chapterhouse has a square floor plan with sides of approximately 20 m, and a ceiling height of approximately 14 m.
Main materials: mixed masonry, limestone stonework, glass.

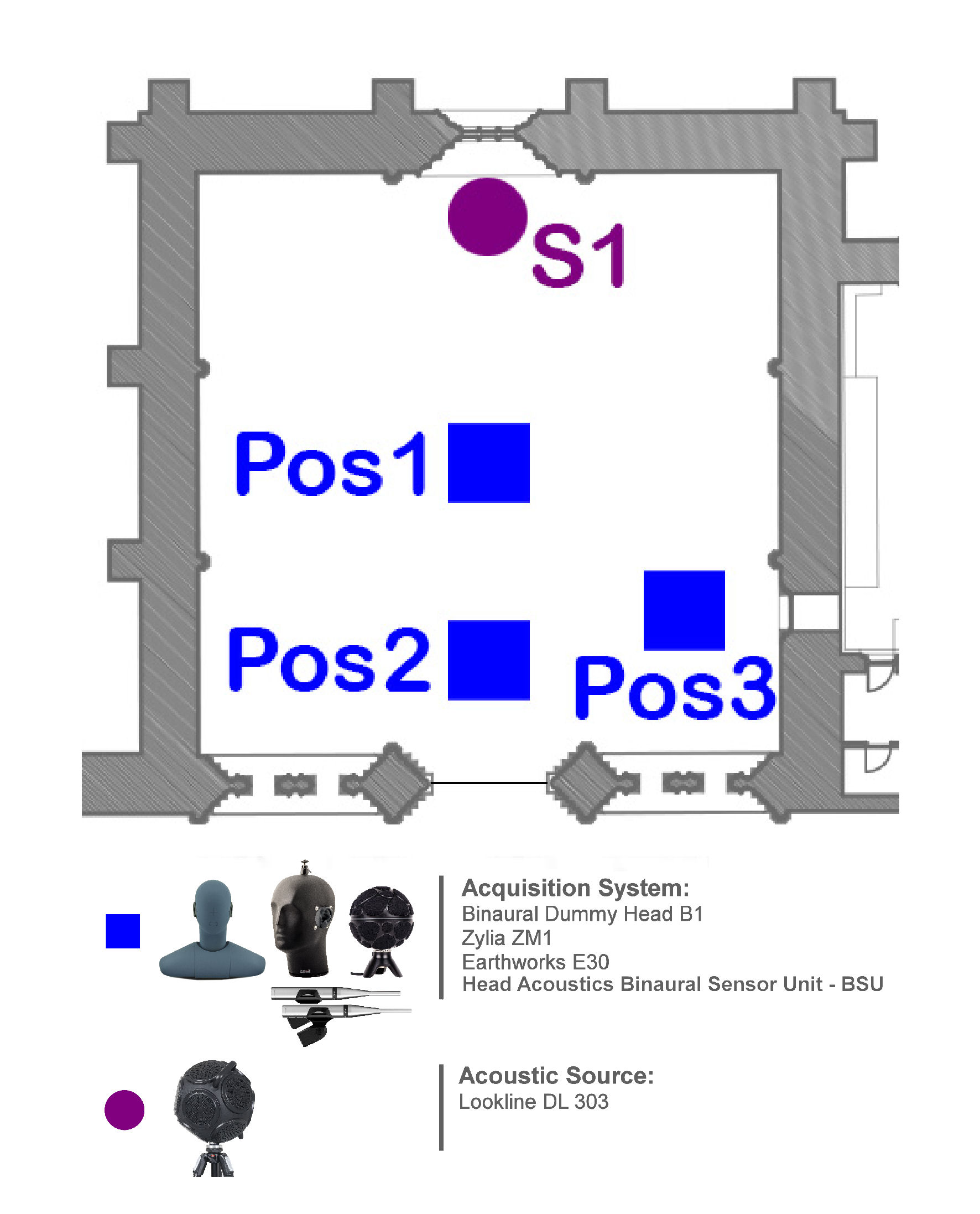

Measurement points and source location
The sound source was placed near the east window (S1). Acoustic acquisitions and recordings were performed in 3 locations: the first located in the centre of the Chapter Room (Pos1), the second in an intermediate position closer to the entrance (Pos2), and the third in front of the entrance to the wine cellar (Pos3).
Demo Audio Files
“Male and Female speech” -> Original
“Male and Female speech speech” -> Processed in Stereo
Acoustic Source near east window (S1) and Acquisition System in Position 2; T30,wide = 10.13 s
“Male and Female speech speech” -> Processed in Binaural (to use headphones)
Acoustic Source near east window (S1) and Acquisition System in Position 2; T30,wide = 10.13 s
“Guitar_Capriccio_Arabe_Tarrega” -> Original
“Guitar_Capriccio_Arabe_Tarrega” -> Processed in Stereo
Acoustic Source near east window (S1) and Acquisition System in Position 2; T30,wide = 10.13 s
“Guitar_Capriccio_Arabe_Tarrega” -> Processed in Binaural (to use headphones)
Acoustic Source near east window (S1) and Acquisition System in Position 2; T30,wide = 10.13 s
“Kyrie_Missa_Notre_Dame_Guillame_de_Machaut” -> Original
“Kyrie_Missa_Notre_Dame_Guillame_de_Machaut” -> Processed in Stereo
Acoustic Source near east window (S1) and Acquisition System in Position 2; T30,wide = 10.13 s
“Kyrie_Missa_Notre_Dame_Guillame_de_Machaut” -> Processed in Binaural (to use headphones)
Acoustic Source near east window (S1) and Acquisition System in Position 2; T30,wide = 10.13 s
