The Church has approximate dimensions of 89 m in length by 22 m in width, and 50 m in width at the transept, with a ceiling height of approximately 25 m from the floor to the nave vault in the transept. Its area is therefore approximately 2060 m2, its volume approximately 45950 m3.
Main materials: mixed masonry, limestone stonework (lioz), wood, glass.

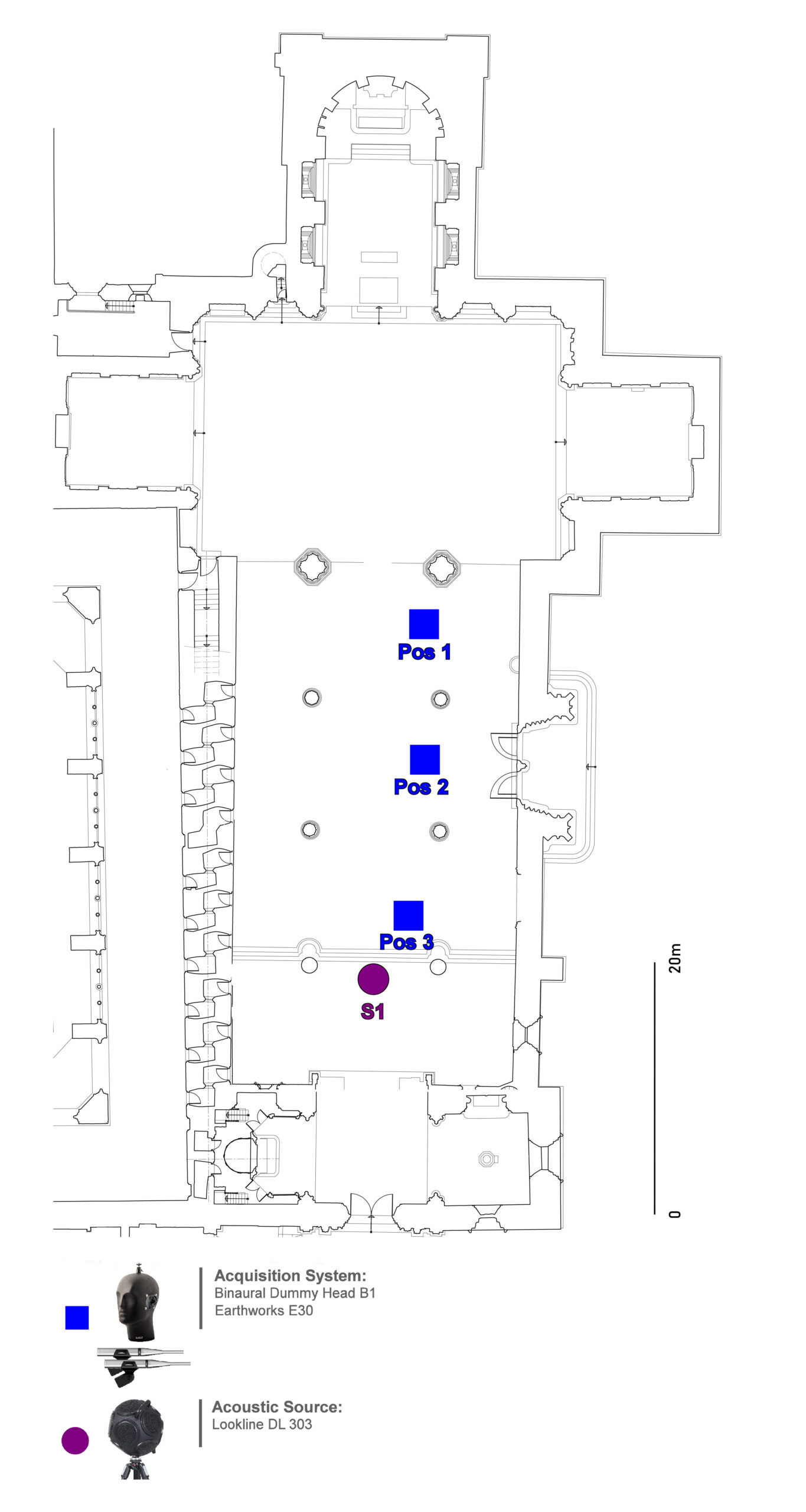

Measurement points and source location

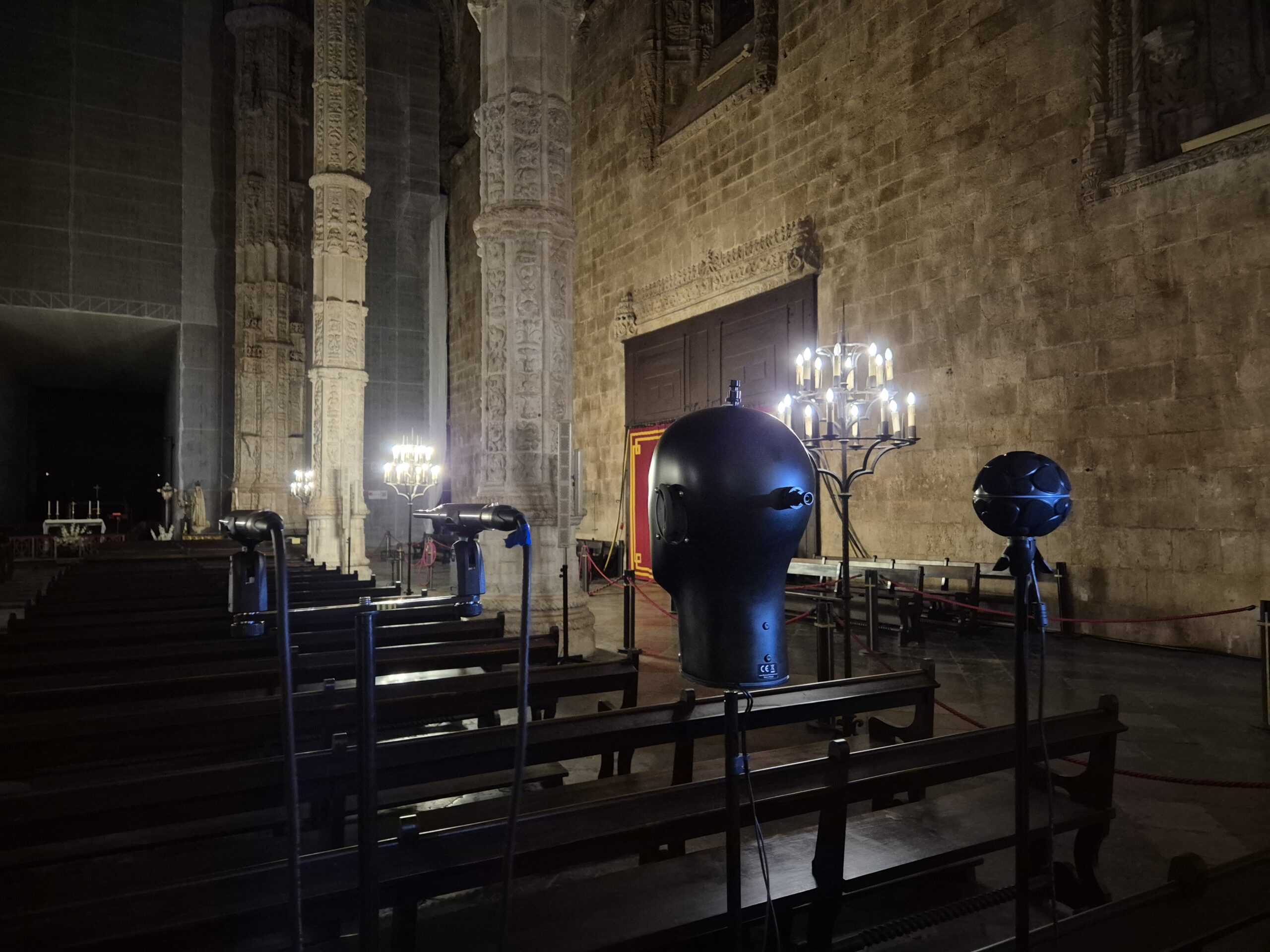

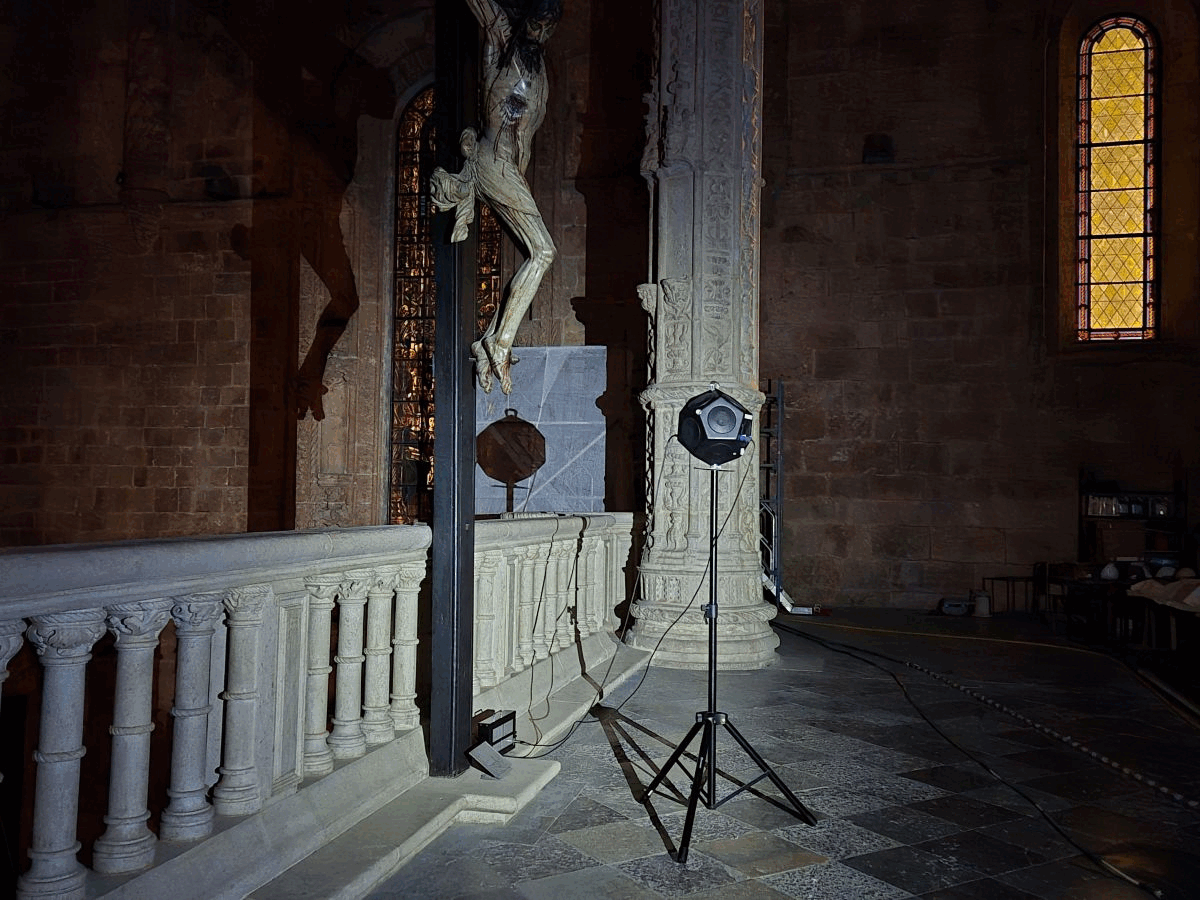

The sound source was placed in the high choir, in a centred position with the nave (S1). Acoustic acquisitions and recordings were made in 3 locations in the nave of the Church in the area intended for the faithful (Pos1, Pos2, Pos3).
Demo Audio Files
“Male and Female speech” -> Original
“Male and Female speech speech” -> Processed in Stereo
Acoustic Source in the High Choir (S1) and Acquisition System in Position 1; T30,wide = 6.14 s
“Male and Female speech speech” -> Processed in Binaural (to use headphones)
Acoustic Source in the High Choir (S1) and Acquisition System in Position 1; T30,wide = 6.14 s
“Guitar_Capriccio_Arabe_Tarrega” -> Original
“Guitar_Capriccio_Arabe_Tarrega” -> Processed in Stereo
Acoustic Source in the High Choir (S1) and Acquisition System in Position 1; T30,wide = 6.14 s
“Guitar_Capriccio_Arabe_Tarrega” -> Processed in Binaural (to use headphones)
Acoustic Source in the High Choir (S1) and Acquisition System in Position 1; T30,wide = 6.14 s
“Kyrie_Missa_Notre_Dame_Guillame_de_Machaut” -> Original
“Kyrie_Missa_Notre_Dame_Guillame_de_Machaut” -> Processed in Stereo
Acoustic Source in the High Choir (S1) and Acquisition System in Position 1; T30,wide = 6.14 s
“Kyrie_Missa_Notre_Dame_Guillame_de_Machaut” -> Processed in Binaural (to use headphones)
Acoustic Source in the High Choir (S1) and Acquisition System in Position 1; T30,wide = 6.14 s
