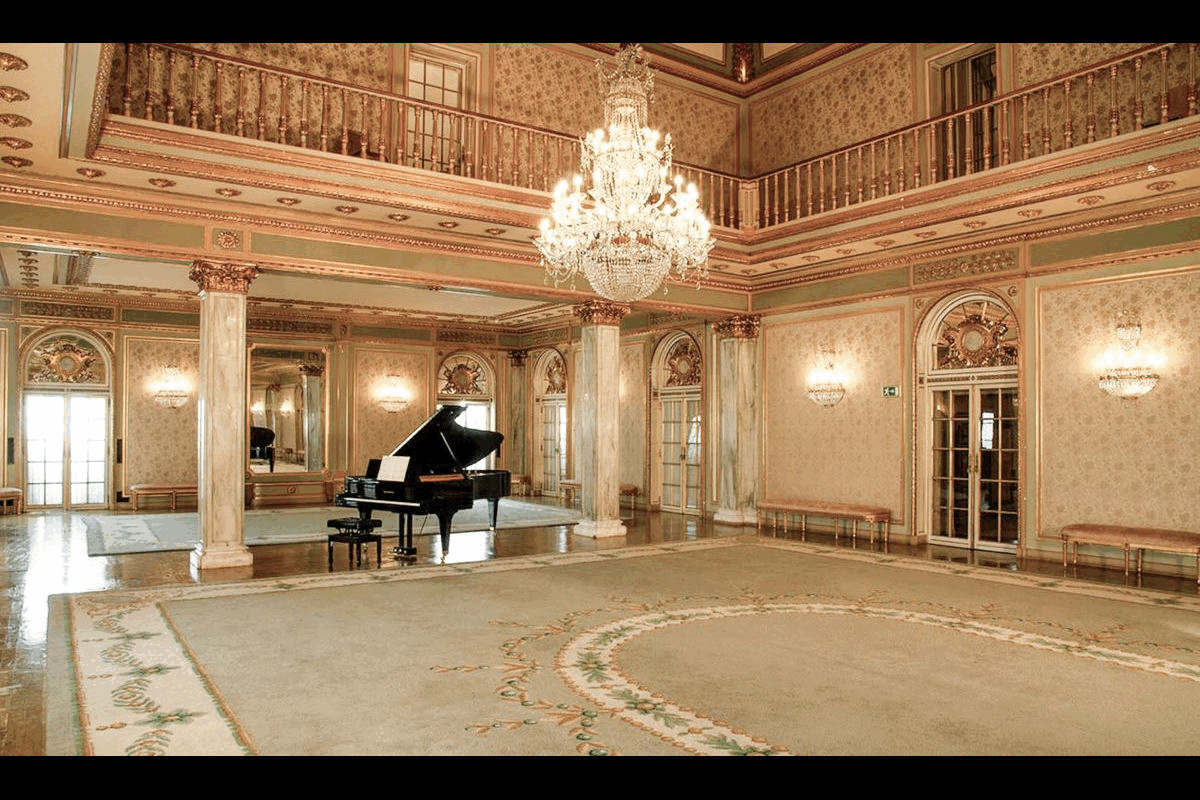

The Great Hall has a rectangular floor plan and a complete mezzanine on its perimeter, allowing access to the balcony on the main façade of the building. Its approximate dimensions are 32.2 m long by 11.3 m wide, and a ceiling height of ca. 8.4 m. Volume ca. 2320 m3.
Main materials: mixed masonry, painted stucco, carvings, mirrors, glass, wallpaper, wood. Wooden and flagged floor with large carpets.
Measurement points and source location
The sound source was placed in two positions (S1) and (S2) in the Great Hall, the first under the high ceiling and the second under the low ceiling. Acoustic acquisitions and recordings were performed in 4 locations as indicated.
Demo Audio Files
“Male and Female speech” -> Original
“Male and Female speech speech” -> Processed in Stereo
Acoustic Source (S1) and Acquisition System in Position 1; T30,wide = 1.58 s
“Male and Female speech speech” -> Processed in Binaural (to use headphones)
Acoustic Source (S1) and Acquisition System in Position 1; T30,wide = 1.58 s
“Guitar_Capriccio_Arabe_Tarrega” -> Original
“Guitar_Capriccio_Arabe_Tarrega” -> Processed in Stereo
Acoustic Source (S1) and Acquisition System in Position 1; T30,wide = 1.58 s
“Guitar_Capriccio_Arabe_Tarrega” -> Processed in Binaural (to use headphones)
Acoustic Source (S1) and Acquisition System in Position 1; T30,wide = 1.58 s
“Hell_of_a_Guy” -> Original
“Hell_of_a_Guy” -> Processed in Stereo
Acoustic Source (S1) and Acquisition System in Position 1; T30,wide = 1.58 s
“Hell_of_a_Guy” -> Processed in Binaural (to use headphones)
Acoustic Source (S1) and Acquisition System in Position 1; T30,wide = 1.58 s
