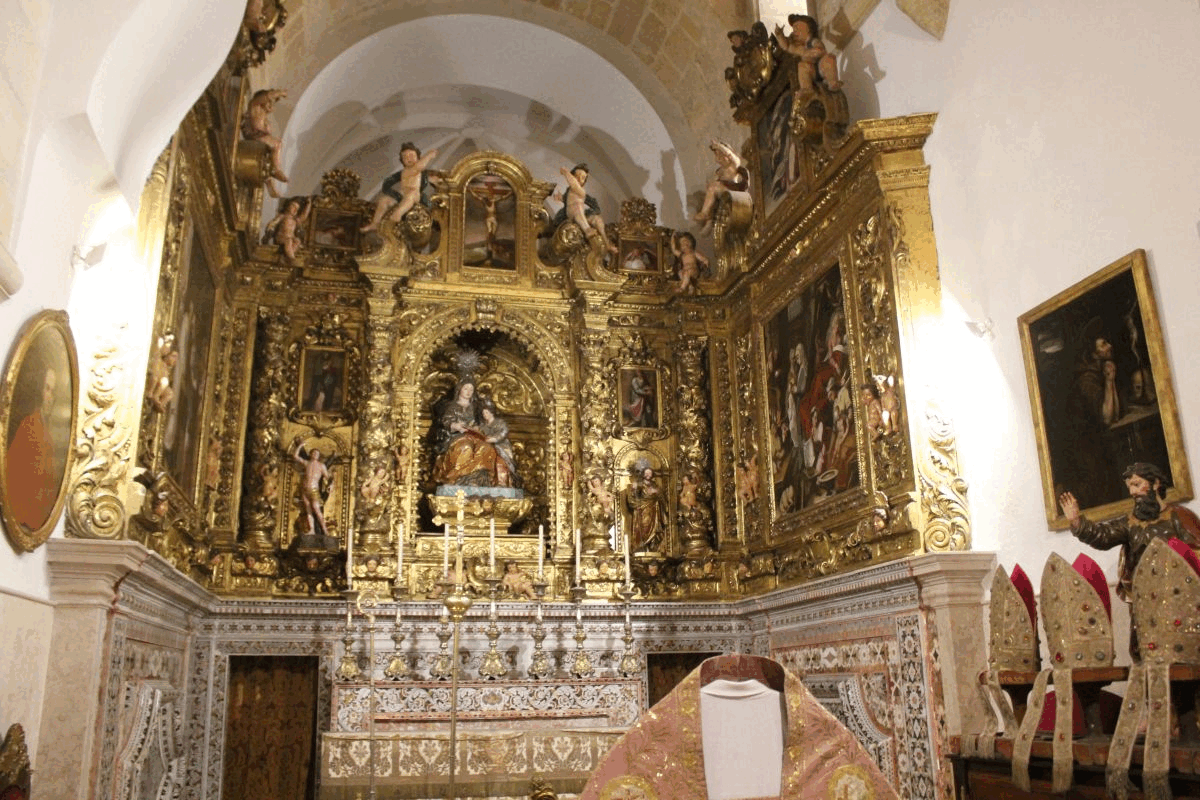

The Patriarch’s Dressing Room is approximately 14 m long and approximately 4.5 m wide (although the altarpiece divides the space) and has a ceiling height of approximately 6 m. The usable interior area is approximately 65 m2 and its volume is 390 m3.
Main materials: mixed masonry, plaster and painted stucco, marble, wood, and gilded woodwork.

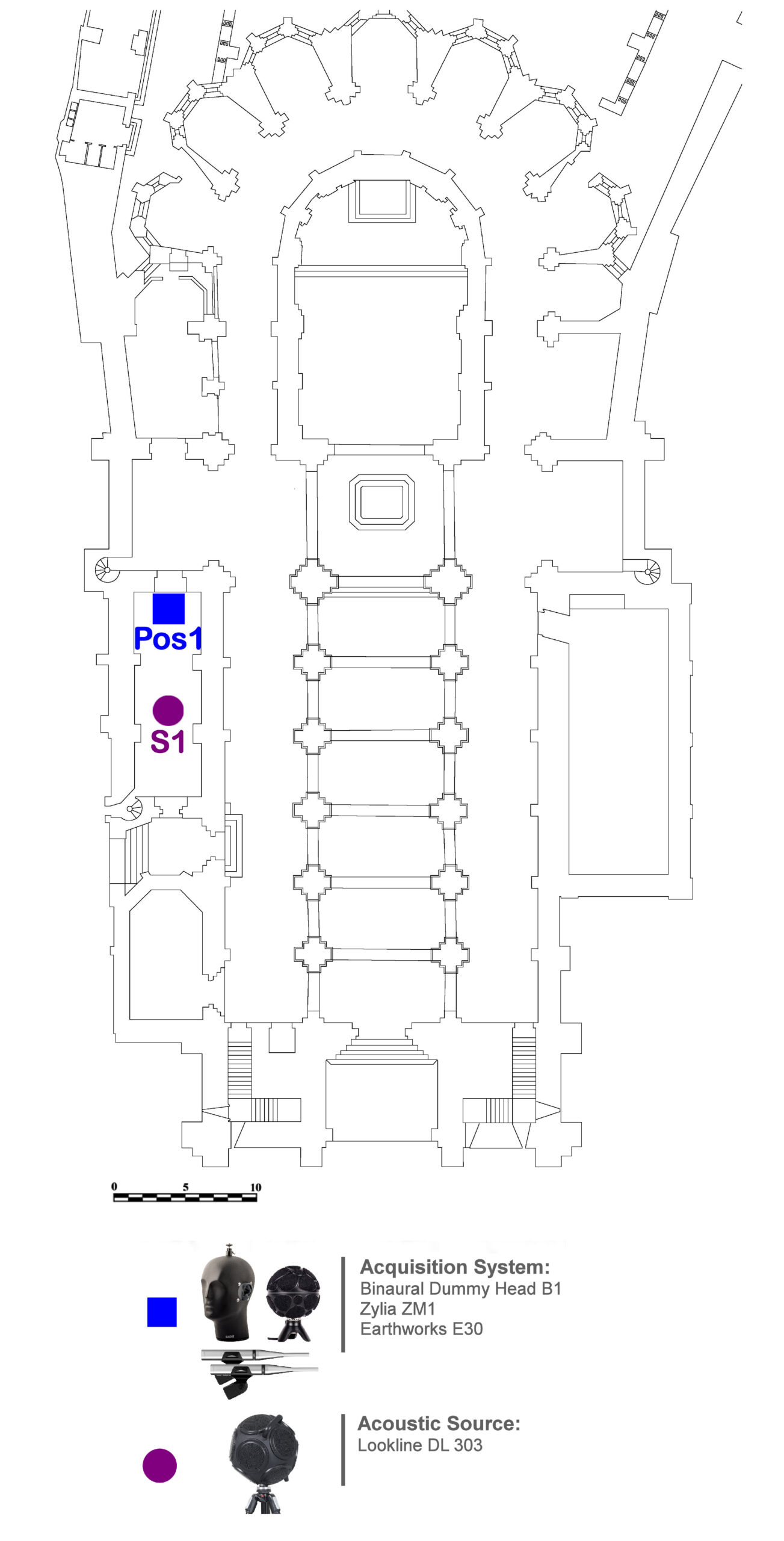

Measurement points and source location

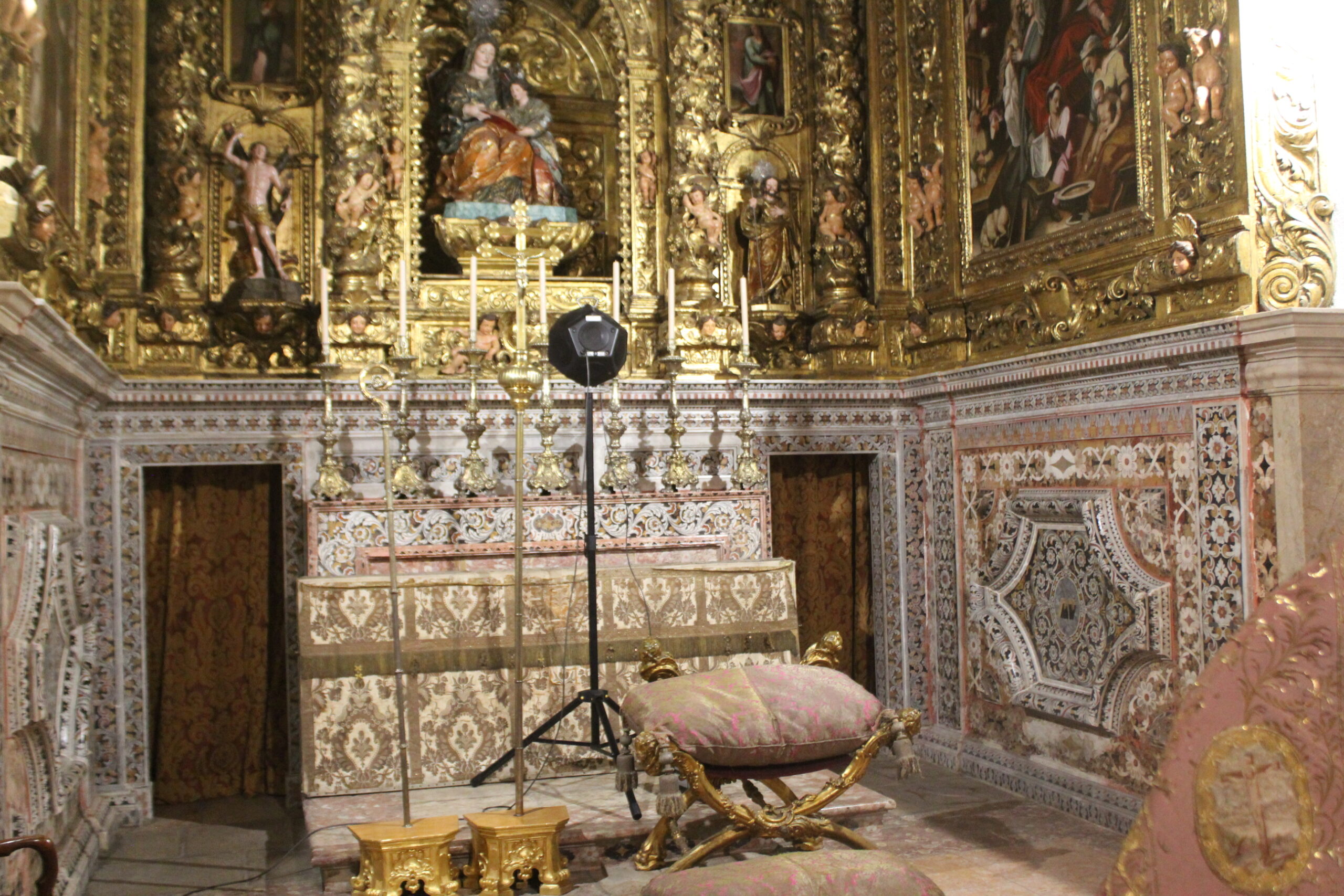

The sound source was placed near the altarpiece (S1), in a centred position. An acoustic acquisition and recording was made near the entrance to the Dressing room. (Pos1).
Demo Audio Files
“Male and Female speech” -> Original
“Male and Female speech speech” -> Processed in Stereo
Acoustic Source placed near the altarpiece (S1) in a centred position and Acquisition System in Position 1; T30,wide =1.13 s
“Male and Female speech speech” -> Processed in Binaural (to use headphones)
Acoustic Source placed near the altarpiece (S1) in a centred position and Acquisition System in Position 1; T30,wide =1.13 s
“Guitar_Capriccio_Arabe_Tarrega” -> Original
“Guitar_Capriccio_Arabe_Tarrega” -> Processed in Stereo
Acoustic Source placed near the altarpiece (S1) in a centred position and Acquisition System in Position 1; T30,wide =1.13 s
“Guitar_Capriccio_Arabe_Tarrega” -> Processed in Binaural (to use headphones)
Acoustic Source placed near the altarpiece (S1) in a centred position and Acquisition System in Position 1; T30,wide =1.13 s
“Kyrie_Missa_Notre_Dame_Guillame_de_Machaut” -> Original
“Kyrie_Missa_Notre_Dame_Guillame_de_Machaut” -> Processed in Stereo
Acoustic Source placed near the altarpiece (S1) in a centred position and Acquisition System in Position 1; T30,wide =1.13 s
“Kyrie_Missa_Notre_Dame_Guillame_de_Machaut” -> Processed in Binaural (to use headphones)
Acoustic Source placed near the altarpiece (S1) in a centred position and Acquisition System in Position 1; T30,wide =1.13 s
