The Sacristy is approximately 20 m long by 7 m wide, therefore its usable area is approximately 140 m2, and, with a ceiling height in the vault of approximately 10 m, its volume is approximately equal to 1400 m3.
Main materials: mixed masonry, plaster and painted stucco, marble, wood, and gilded woodwork.

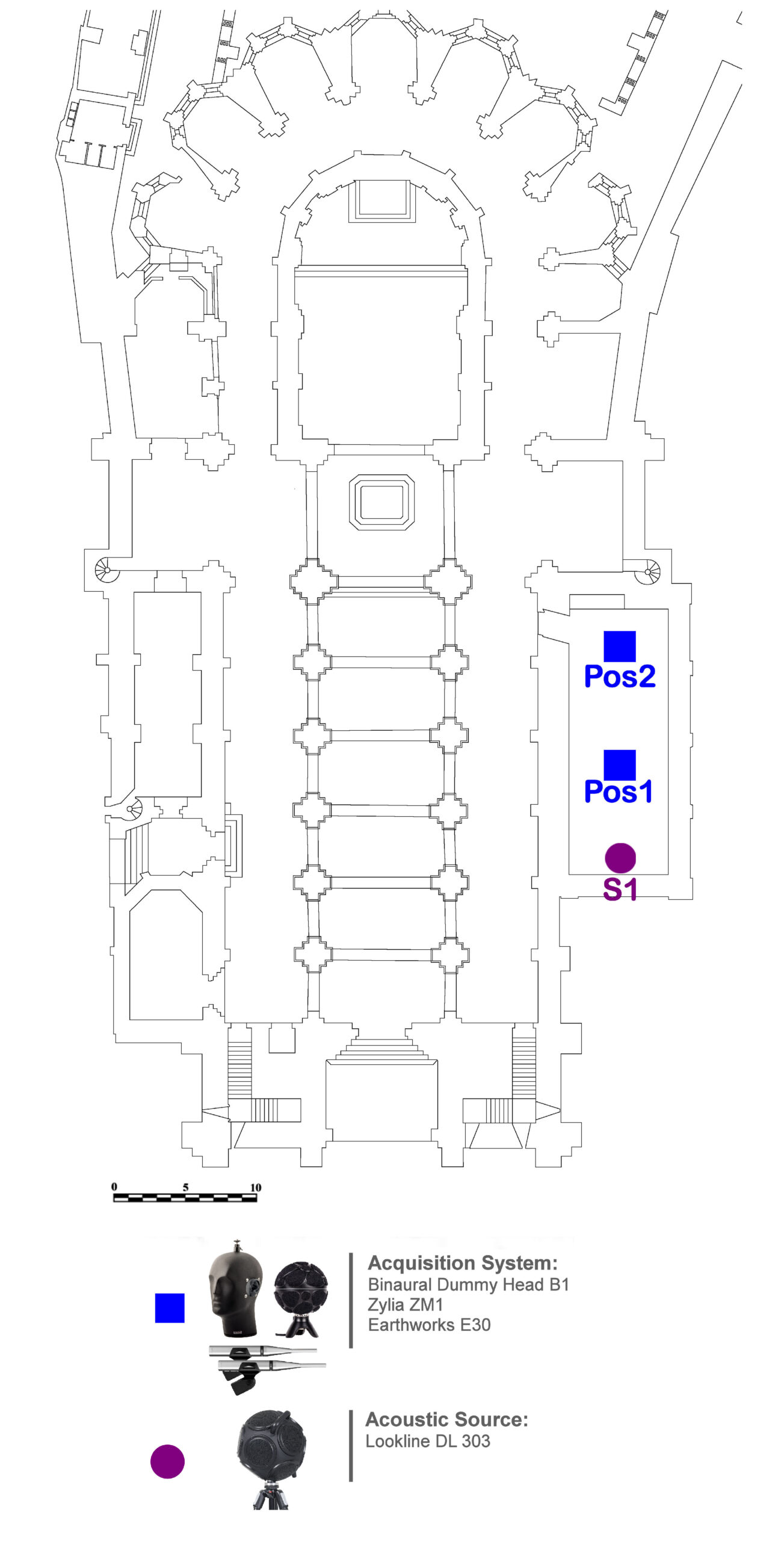

Measurement points and source location
The sound source was placed next to the oratory with St. Vincent (S1), in a central position in the Sacristy. The acoustic acquisitions and recordings were carried out in 2 central locations along the body of the Sacristy (Pos1, Pos2).
Demo Audio Files
“Male and Female speech” -> Original
“Male and Female speech speech” -> Processed in Stereo
Acoustic Source placed next to the oratory with St. Vincent (S1) and Acquisition System in Position 2; T30,wide = 2.33 s
“Male and Female speech speech” -> Processed in Binaural (to use headphones)
Acoustic Source placed next to the oratory with St. Vincent (S1) and Acquisition System in Position 2; T30,wide = 2.33 s
“Guitar_Capriccio_Arabe_Tarrega” -> Original
“Guitar_Capriccio_Arabe_Tarrega” -> Processed in Stereo
Acoustic Source placed next to the oratory with St. Vincent (S1) and Acquisition System in Position 2; T30,wide = 2.33 s
“Guitar_Capriccio_Arabe_Tarrega” -> Processed in Binaural (to use headphones)
Acoustic Source placed next to the oratory with St. Vincent (S1) and Acquisition System in Position 2; T30,wide = 2.33 s
“Kyrie_Missa_Notre_Dame_Guillame_de_Machaut” -> Original
“Kyrie_Missa_Notre_Dame_Guillame_de_Machaut” -> Processed in Stereo
Acoustic Source placed next to the oratory with St. Vincent (S1) and Acquisition System in Position 2; T30,wide = 2.33 s
“Kyrie_Missa_Notre_Dame_Guillame_de_Machaut” -> Processed in Binaural (to use headphones)
Acoustic Source placed next to the oratory with St. Vincent (S1) and Acquisition System in Position 2; T30,wide = 2.33 s
