The Refectory has a rectangular floor plan with approximate dimensions of 38.5 m by 9 m (area approx. 345 m2), and a ceiling height of approx. 7 m. Its volume is approximately 2420 m3.
Main materials: mixed masonry, limestone (lioz) stonework, tiles, glass.

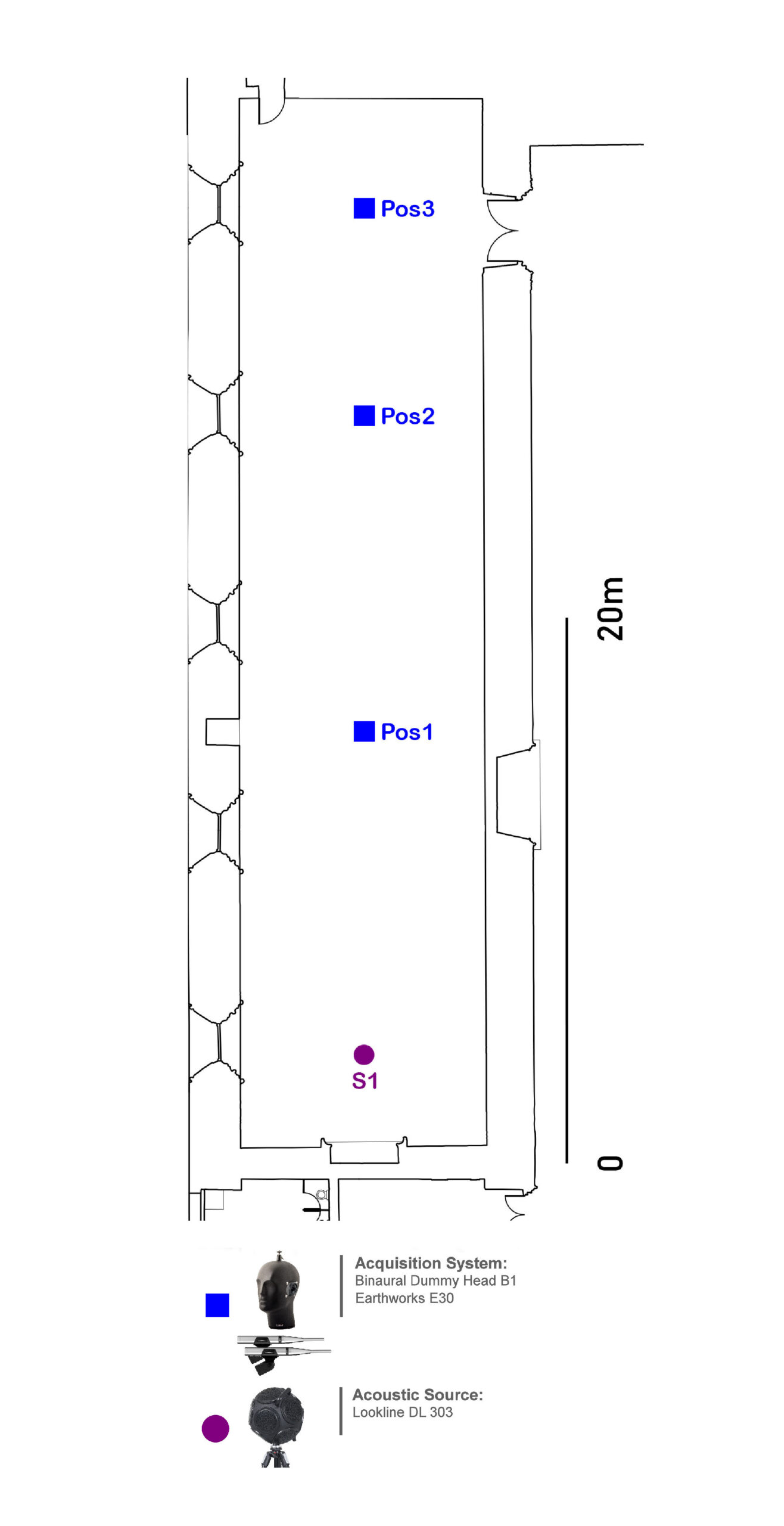

Measurement points and source location

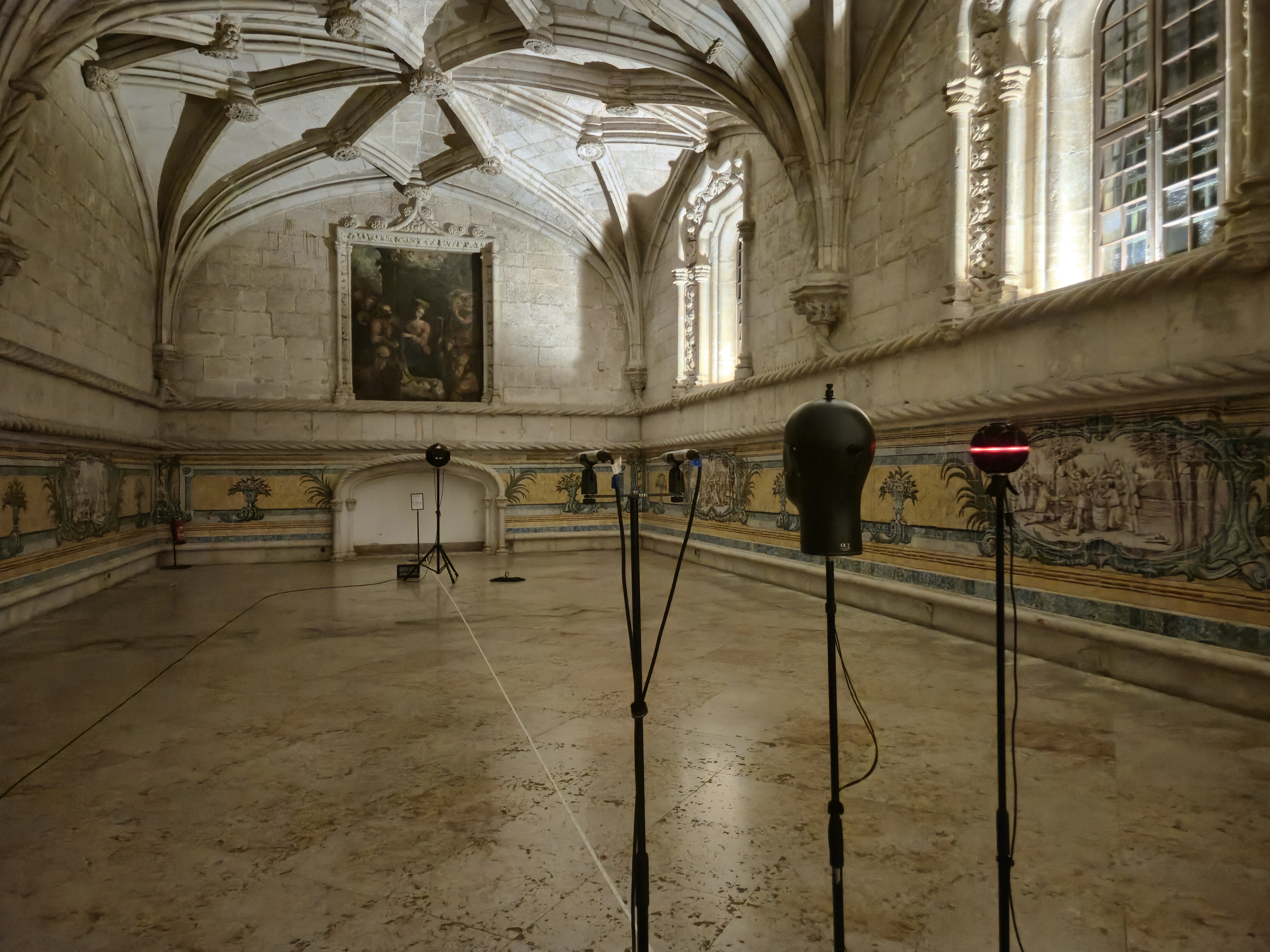

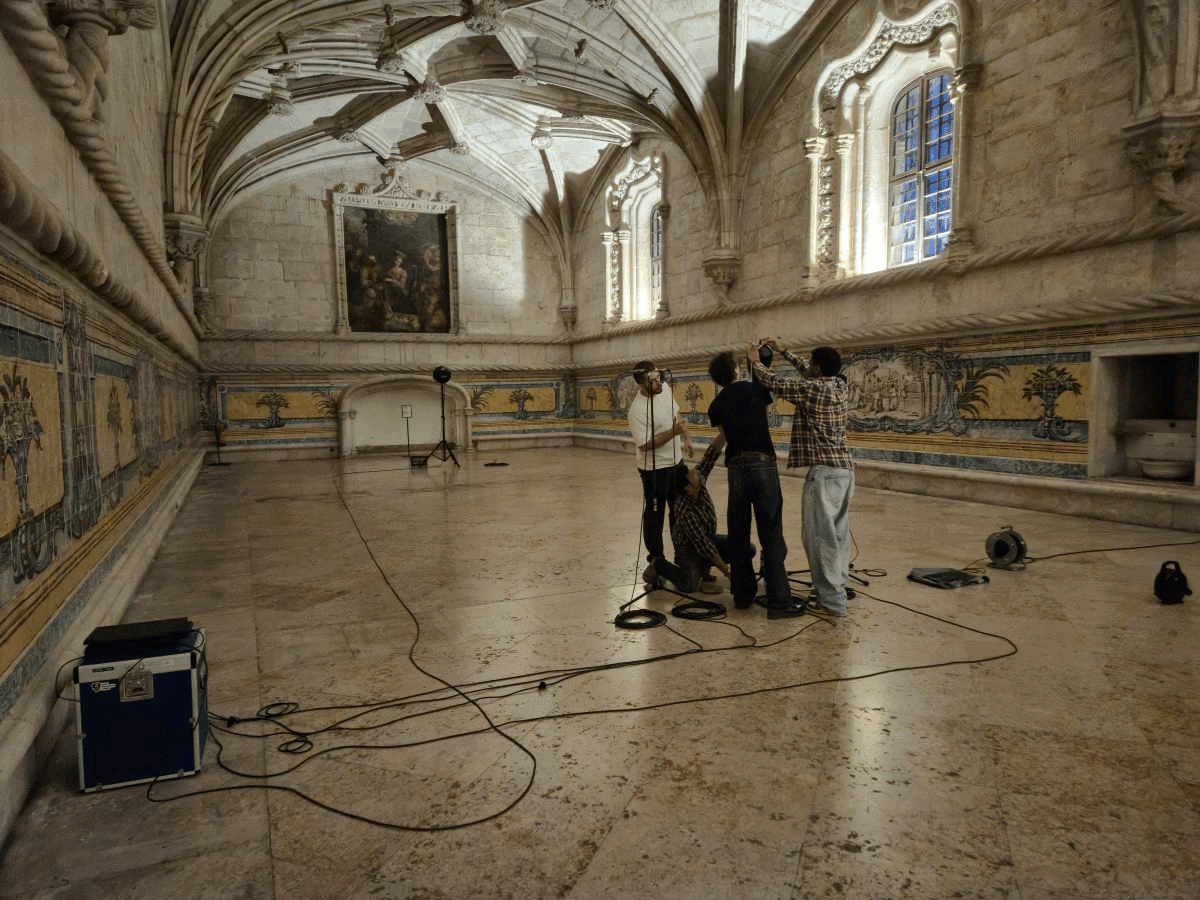

The sound source was placed near the south wall, in a centralized manner (S1). Acoustic acquisitions and recordings were carried out in 3 locations, arranged along the Refectory (Pos1, Pos2, Pos3).
Demo Audio Files
“Male and Female speech” -> Original
“Male and Female speech speech” -> Processed in Stereo
Acoustic Source placed near the south wall, centralized (S1) and Acquisition System in Position 3; T30,wide = 8.75 s
“Male and Female speech speech” -> Processed in Binaural (to use headphones)
Acoustic Source placed near the south wall, centralized (S1) and Acquisition System in Position 3; T30,wide = 8.75 s
“Guitar_Capriccio_Arabe_Tarrega” -> Original
“Guitar_Capriccio_Arabe_Tarrega” -> Processed in Stereo
Acoustic Source placed near the south wall, centralized (S1) and Acquisition System in Position 3; T30,wide = 8.75 s
“Guitar_Capriccio_Arabe_Tarrega” -> Processed in Binaural (to use headphones)
Acoustic Source placed near the south wall, centralized (S1) and Acquisition System in Position 3; T30,wide = 8.75 s
“Kyrie_Missa_Notre_Dame_Guillame_de_Machaut” -> Original
“Kyrie_Missa_Notre_Dame_Guillame_de_Machaut” -> Processed in Stereo
Acoustic Source placed near the south wall, centralized (S1) and Acquisition System in Position 3; T30,wide = 8.75 s
“Kyrie_Missa_Notre_Dame_Guillame_de_Machaut” -> Processed in Binaural (to use headphones)
Acoustic Source placed near the south wall, centralized (S1) and Acquisition System in Position 3; T30,wide = 8.75 s
